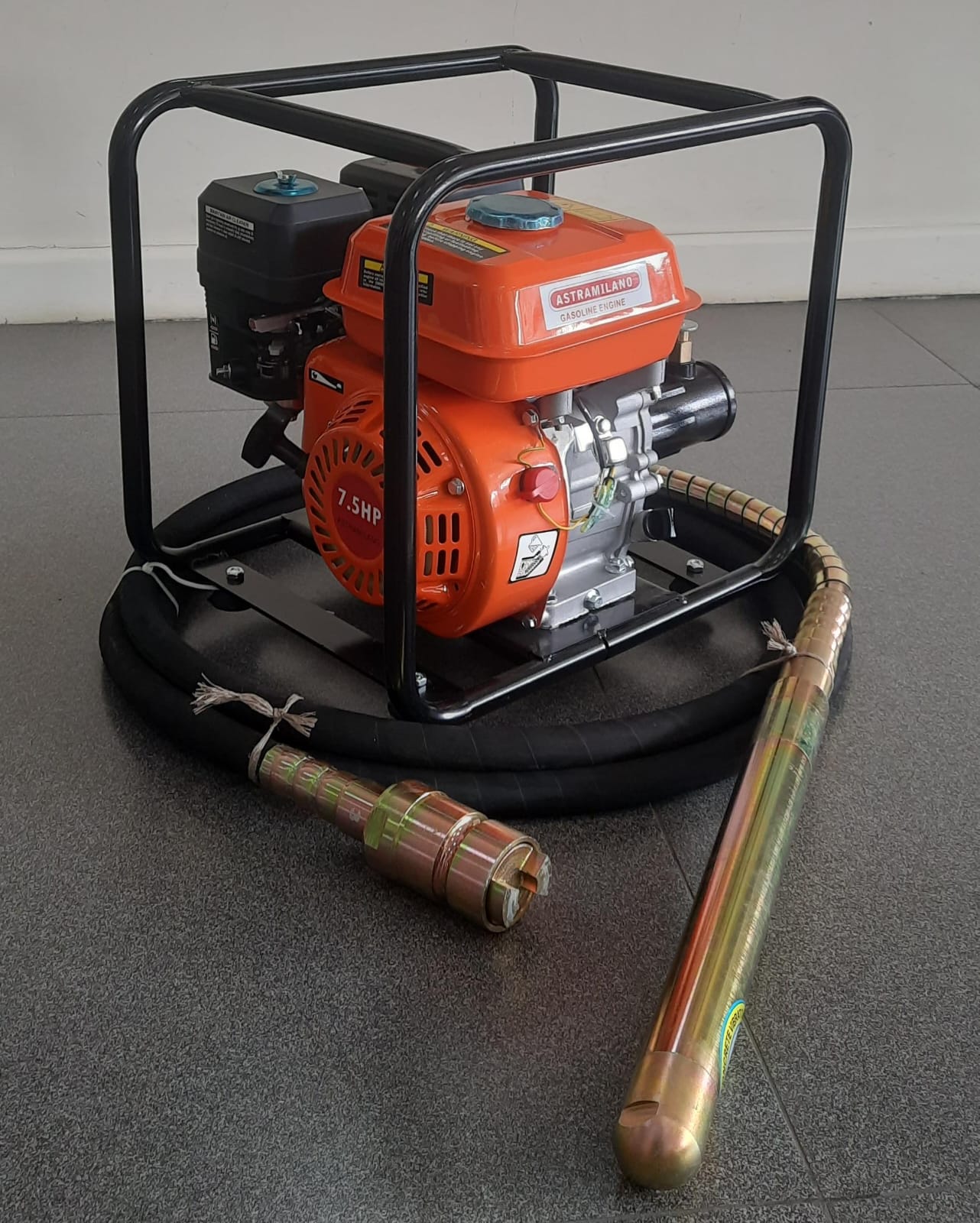

7.5HP PETROL CONCRETE POKER VIBRATOR.

Engine Specifications

• Brand/Model: Astramilano Gasoline Engine

• Max Power Output: 7.5 HP  5.1 kW @ 3600 rpm

• Engine Type: Single-cylinder, 4-stroke, air-cooled, OHV

• Displacement:  210 cc (70mm bore X 54mm stroke)

• Ignition System: Transistorized magneto (contactless)

• Safety Feature: Low oil alert system with memory shutdown function

• Frame: Heavy-duty protective steel roll cage

Vibrator Hose & Shaft Specs

• Shaft Diameter: Standard 45mm poker head

• Connection Type: Dynapac-style (claw/pin coupler coupling system)

• Application Suitability: General reinforced concrete, floor slabs, foundations, and retaining walls
