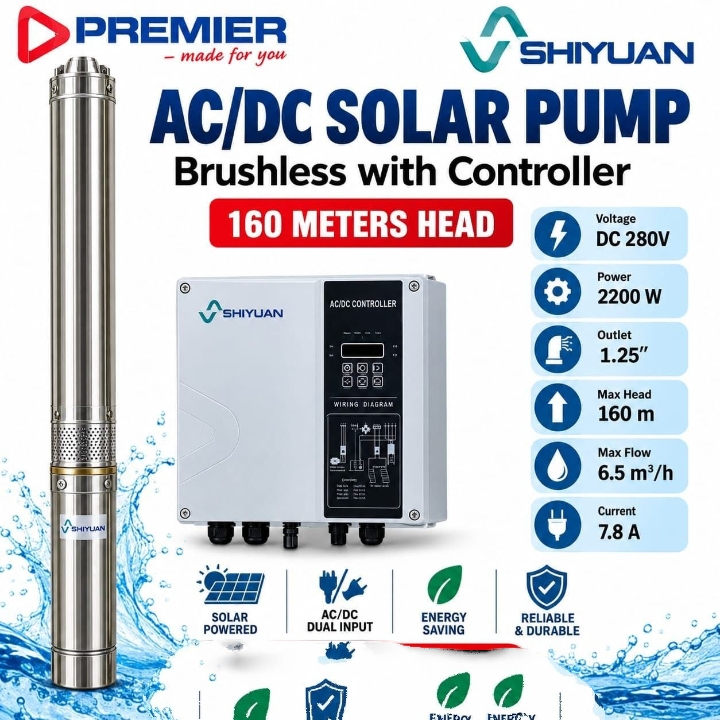

AC/DC SOLAR SUBMERCIBLE PUMP SYSTEM

Technical Specifications

Key Performance Specs

• Brand / System: Premier – Shiyuan AC/DC Solar Pump System

• Maximum Head (Lift): 160 meters

• Maximum Flow Rate: 6.5 m^3/h (approx 6,500 L/h)

• Outlet Diameter: 1.25 inches

• Motor Type: High-efficiency Brushless DC / Hybrid Motor

Electrical Specifications

• Rated Power: 2200 W (2.2 kW / 3 HP)

• Operating Voltage: DC 280 V (Hybrid Controller supports AC/DC Dual Input)

• Rated Current: 7.8 A

• Power Compatibility: Direct Solar DC Power or AC Grid / Generator Backup

Controller & System Features

• Dual Power Input: Intelligent hybrid AC/DC controller allows seamless power switching.

• Control Unit: External smart MPPT digital controller with wiring diagram & LED display.

• Protection Features: Dry-run protection, over-voltage/under-voltage protection, and overload cut-off.

• Build Material: Heavy-duty corrosion-resistant stainless steel body.

Primary Applications

• Deep borehole water extraction

• Large-scale agricultural drip & sprinkler irrigation

• Off-grid residential and livestock water supply systems
