PLATE COMPACTOR WITH HONDA GX390 ENGINE [330 KG]
KSh250,000.00 KSh225,000.00

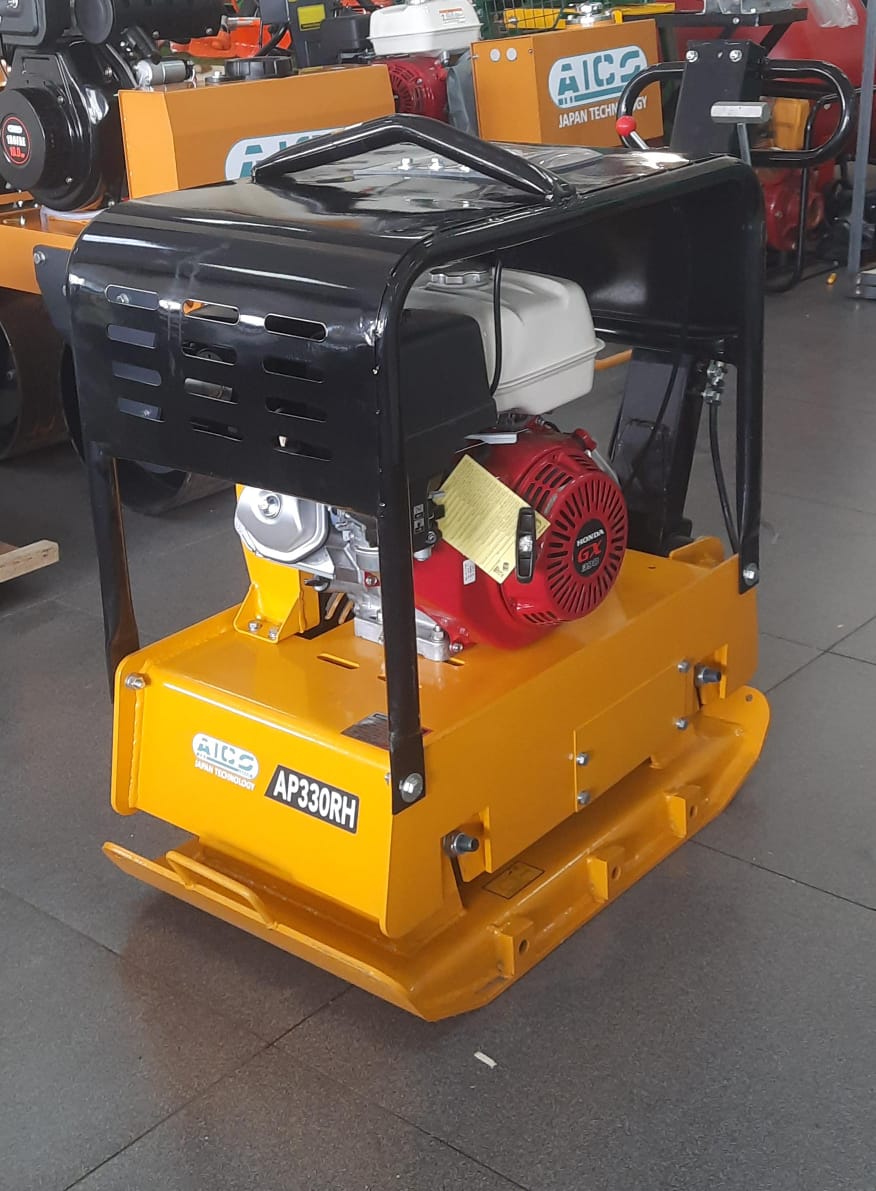

This is an AICO Japan AP330RH Heavy-Duty Reversible Plate Compactor powered by a Honda GX390 petrol engine.
Technical Specifications
| Parameter | Specification |
| Model | AICO AP330RH |
| Engine | Honda GX390 (4-Stroke, Air-Cooled OHV Petrol Engine) |
| Power Output | 13 HP (8.7 kW @ 3,600 RPM) |
| Operating Weight | ~330 kg |
| Centrifugal / Compaction Force | 45 kN – 50 kN |
| Compaction Depth | Up to 90 cm (35 in) |
| Movement Direction | Hydraulic Reversible (Forward & Reverse) |
| Plate Size | ~860 mm × 485 mm |
| Travel Speed | Up to 40 cm/s (24 m/min) |
| Efficiency Area Rate | ~650 m²/hr |
| Starting System | Recoil Pull Start |
Key Features & Construction
-
Hydraulic Control: Allows smooth forward and reverse directional switching via the top handle lever for efficient operation in tight trenches and confined spaces.
-
Heavy-Duty Protective Frame: Built-in steel cage with a central lifting hook to shield the engine from falling debris and facilitate crane or hoist transportation.
-
Durable Base Plate: Self-cleaning cast-iron bottom plate with curved edges for stability during compaction.
-
Vibration Isolation: Shock-absorption mounts minimize handle vibration, reducing operator fatigue during continuous work.
-
Applications: Ideal for heavy soil, sand, gravel, trench backfilling, sub-base compaction, and road construction projects.
