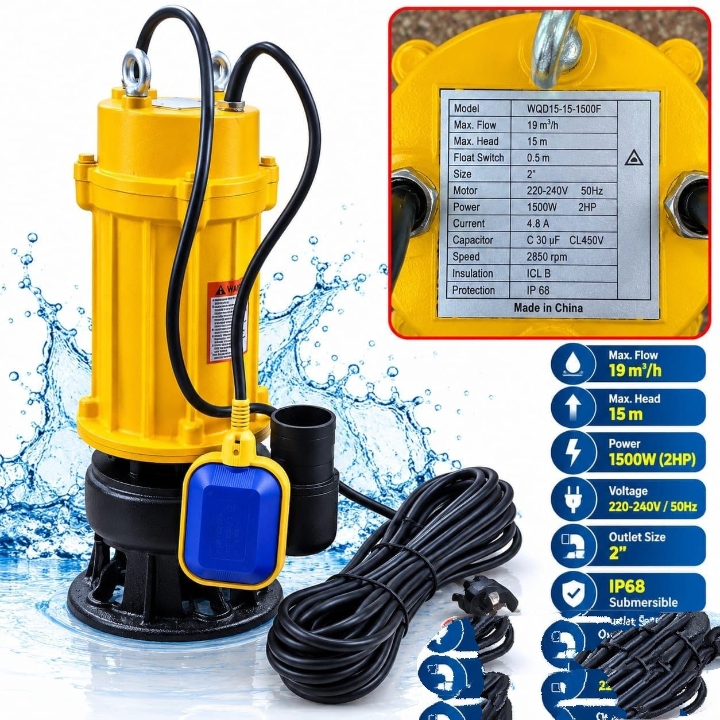

SUBMERSIVE SEWAGE WATER PUMP

Technical Specifications

Hydraulic & Performance Specs

• Model: WQD15-15-1500F

• Max Flow Rate: 19 m ^3 /h (316 L/min)

• Max Head: 15 m

• Outlet Diameter / Size: 2 inches (50 mm)

• Float Switch: Automatic float switch (0.5 m level control)

Motor & Electrical Specs

• Power Output: 1500 W / 2.0 HP

• Voltage & Frequency: 220 — 240 V ~ 50 Hz (Single Phase)

• Rated Current: 4.8 A
• Rotational Speed: 2850 RPM

• Capacitor Rating: 30 F / 450 V

• Insulation Class: ICL B

• Ingress Protection: IP68 (Fully Submersible)

Build & Features

• Pump Body: Heavy-duty cast iron base and motor housing.

• Automatic Operation: Integrated float switch automatically toggles operation depending on water level to prevent dry running.

• Applications: Suitable for draining dirty water, slurry, sewage, flooded basements, septic tanks, and construction sites containing soft solids.
