WIFI CAMERA STREET LIGHT

Camera & Surveillance Specifications

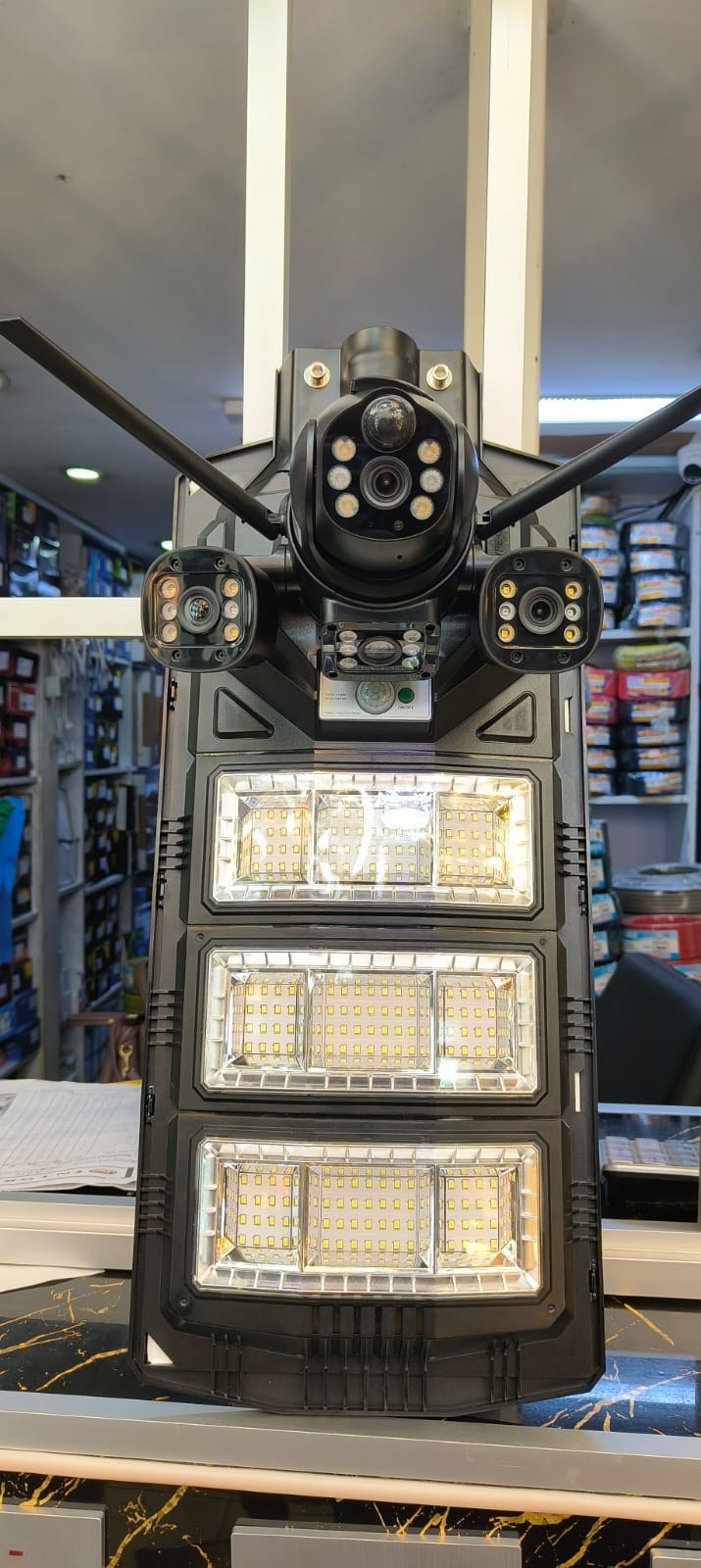

• Multi-Lens System: Features a unique multi-camera array to eliminate blind spots:

  • Top PTZ Camera: A motorized dome camera capable of horizontal panning and vertical tilting for active tracking.

  • Fixed Side/Lower Cameras: Left, right, and center fixed-angle lens modules providing wide-angle perimeter monitoring.

• Connectivity: Wi-Fi (for areas with local network coverage). It features two high-gain external antennas for long-range signal reception.

• Night Vision: Equipped with dual-light sources surrounding each lens—built-in Infrared (IR) LEDs for stealthy black-and-white night vision and bright White LEDs for full-color nighttime recording.

• Smart Detection: Features a prominent PIR (Passive Infrared) Motion Sensor located right below the camera modules to trigger recording, send mobile alerts, and switch the floodlights from dim to full brightness when movement is detected.

• Audio: Integrated microphone and speaker for two-way audio communication and siren alerts.

Solar & Lighting Specifications

• LED Array: Divided into three large, high-density LED matrix panels with reflective backings to maximize lumen output and ground coverage.

• Solar Panel: A high-efficiency monocrystalline or polycrystalline solar panel is mounted flat across the entire reverse side of the chassis to charge the unit during the day.

• Battery: Internal high-capacity Lithium Iron Phosphate ($LiFePO_4$) battery pack, preferred for its long lifespan and ability to handle deep discharge cycles in outdoor temperatures.

• Lighting Modes:

  • Dusk-to-Dawn: Automatically turns on at night and off at dawn.

  • PIR Energy Saver: Runs at a low ambient brightness (dim mode) to save power, instantly jumping to 100% full brightness when the sensor detects a person or vehicle.

Physical & Weatherproofing Features

• Chassis Material: Heavy-duty, UV-stabilized ABS plastic housing designed to withstand prolonged sun exposure without degrading.

• Weatherproof Rating: IP65 or IP66 rated, making it completely dust-tight and resistant to heavy rain and harsh outdoor elements.

• Mounting: Designed for pole mounting or wall installation using a heavy-duty steel bracket (mounting sleeve visible at the very top of the unit).
