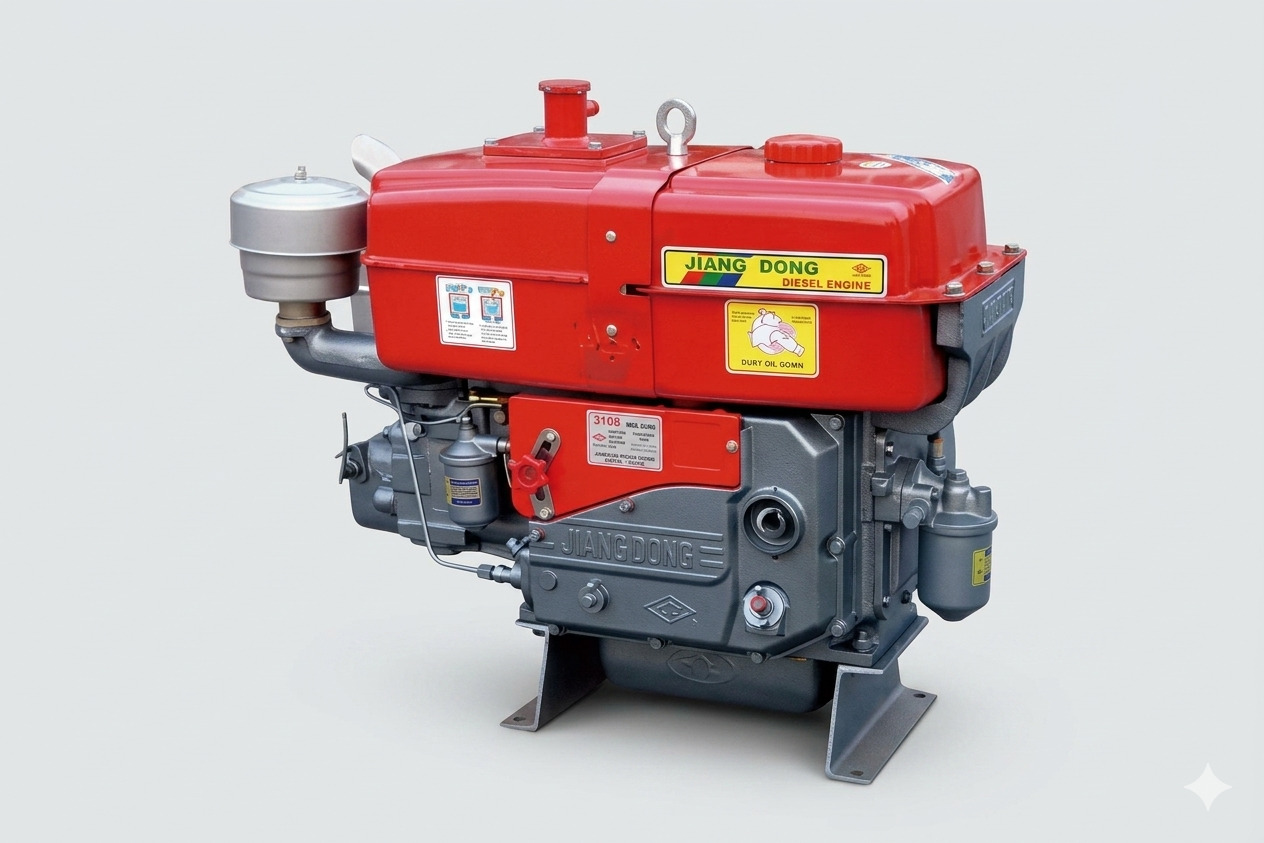

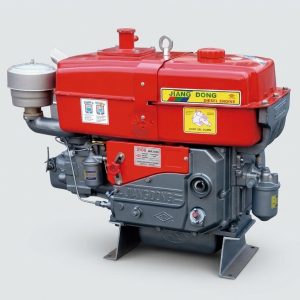

This is a Jiang Dong (3108 series) single-cylinder, horizontal water-cooled diesel engine.
These heavy-duty agricultural/industrial engines are typically configured based on the specific sub-model (most commonly JD 1105 or JD 1110 in this body frame format).
Technical Specifications
| Parameter | Standard Specification |
| Engine Type | Single-Cylinder, Horizontal, 4-Stroke, Direct Injection |
| Fuel Type | Diesel |
| Power Output Range | 20 (for JD 1115) |
| Rated Speed | 2,200 RPM |
| Cooling System | Water-Cooled / Condensing Radiator |
| Lubrication System | Combined Pressure and Splash Lubrication |
| Starting Method | Hand-cranked (manual) or optional Electric Starter |
| Bore × Stroke | 105 mm × 115 mm (approx.) |
| Displacement | ~0.996 L |
| Dry Weight | ~180 kg to 190 kg |
Key Features & Construction
-
Heavy-Duty Cast Iron Block: Built for continuous, high-torque industrial and agricultural operations.
-
Air Filtration: Heavy-duty oil-bath air cleaner mounted on the intake to extend life in dusty environments.
-
Fuel Efficiency: High-pressure direct injection combustion chamber for full fuel atomization and low consumption.
-
Applications: Commonly used to power water pumps, maize mills, concrete mixers, generators, walking tractors, and thresher equipment.
