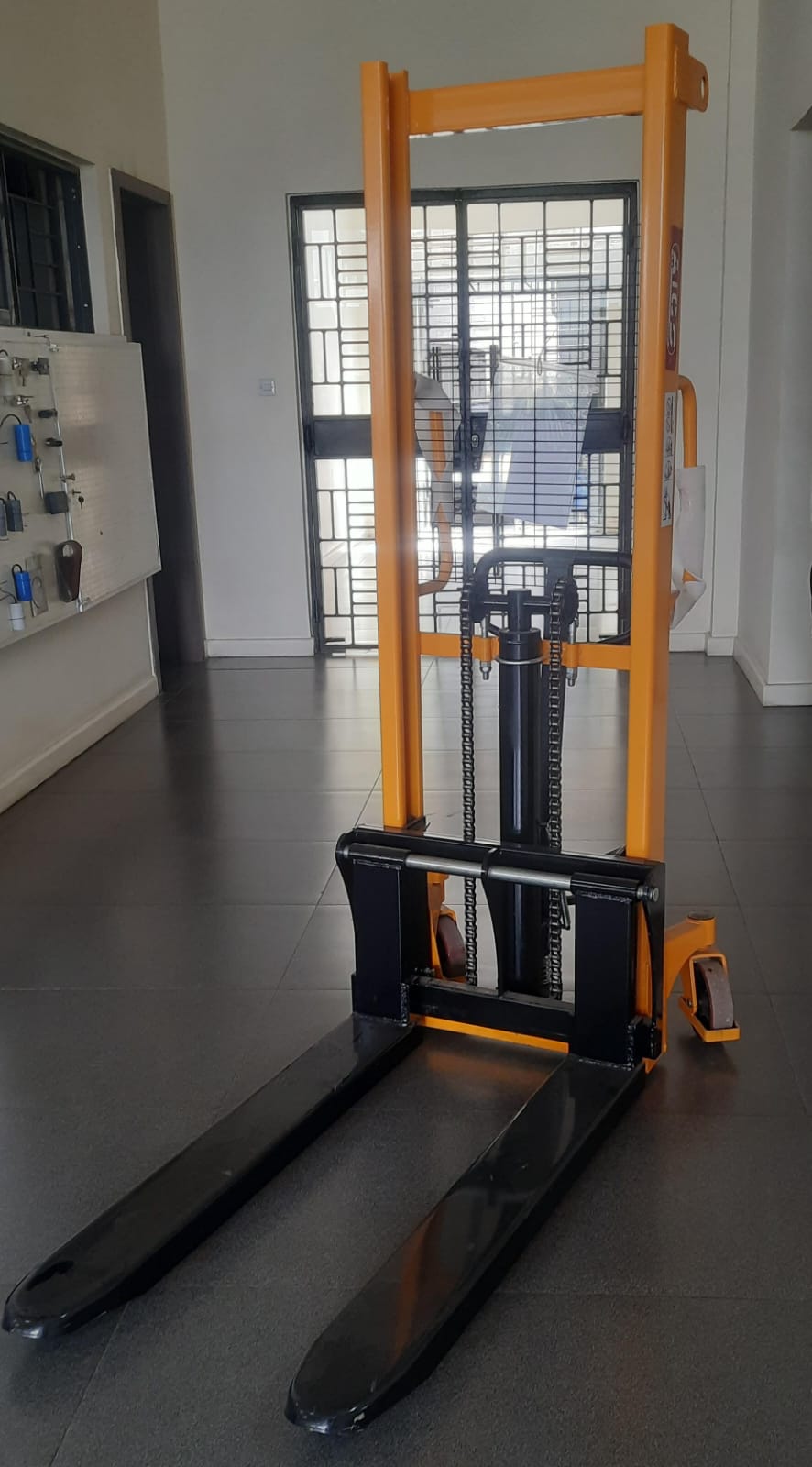

2-TON MANUAL HYDRAULIC STAKER

Load Capacity: This model is engineered to handle a maximum rated lifting capacity of 2,000 kg (2.0 Metric Tonnes).

Lifting Height: Configured with a heavy-duty reinforced mast that typically provides a maximum lift height ranging from 1,600 mm up to 3,000 mm, depending on the specific single or two-stage telescopic mast option.

Lowered Fork Height: The forks lower down to a minimum ground clearance height of 85 mm to 90 mm, allowing smooth entry into standard pallet openings.

Fork Dimensions: Features heavy-gauge steel forks with a standard length of 1150 mm, available in fixed or adjustable widths ranging from 550 mm to 685 mm across the outer edges.

Lifting Control: Utilizes a high-capacity hydraulic cylinder that can be activated via the dual-pumping system, allowing the operator to use either the hand lever or the manual foot pedal.

Chassis & Mast Construction: Fabricated from thickened, industrial-grade C-channel steel with an integrated steel grid safety guard to protect the operator from moving chains and loads.

Braking & Wheels: Equipped with heavy-duty polyurethane or nylon wheels featuring dual front load wheels and $360^\circ$ swiveling rear wheels fitted with mechanical foot-pedal parking brakes for secure loading.
