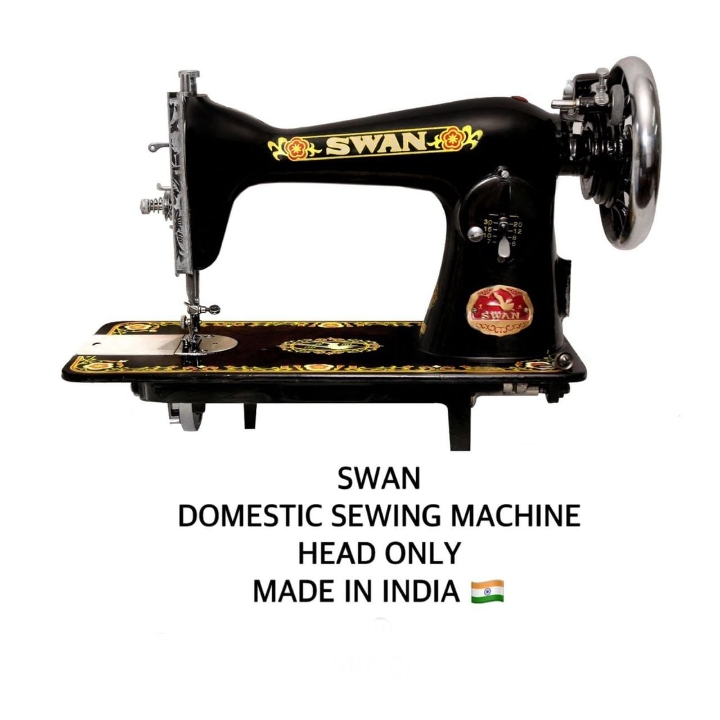

SWAN DOMESTIC SEWING MACHINE (HEAD ONLY)

Technical Specifications

General Information

• Brand/Model: Swan (Domestic Straight Stitch Machine)

• Machine Type: Traditional Mechanical / Straight Stitch Machine Head

• Origin: Made in India

• Body Material: Heavy-duty Cast Iron Body with decorative embellishments

Sewing Performance

• Stitch Type: Single-Needle Lockstitch (Straight Stitch)

• Shuttle Mechanism: Oscillating Shuttle / Central Bobbin System

• Max Sewing Speed: 800 – 1,000 stitches per minute (manual) / up to 1,500 SPM (with electric motor)

• Stitch Regulator: Forward and reverse stitch control knob with locking device (6 to 30 stitches per 25 mm)

• Thread Tension: Numbered dial tension assembly with guard

Operation & Accessories Support

• Drive Mechanism: Hand crank, foot treadle table, or external small sewing motor mountable

• Bobbin Winder: Auto-tripping bobbin winder mechanism attached on top/side

• Bed Type: Flatbed layout

Suitable Applications

• Fabrics: Cotton, linen, silk, light canvas, denim, synthetic, and light-to-medium fabrics

• Use Cases: Home tailoring, garment repair, hemming, alterative mending, and basic crafting
