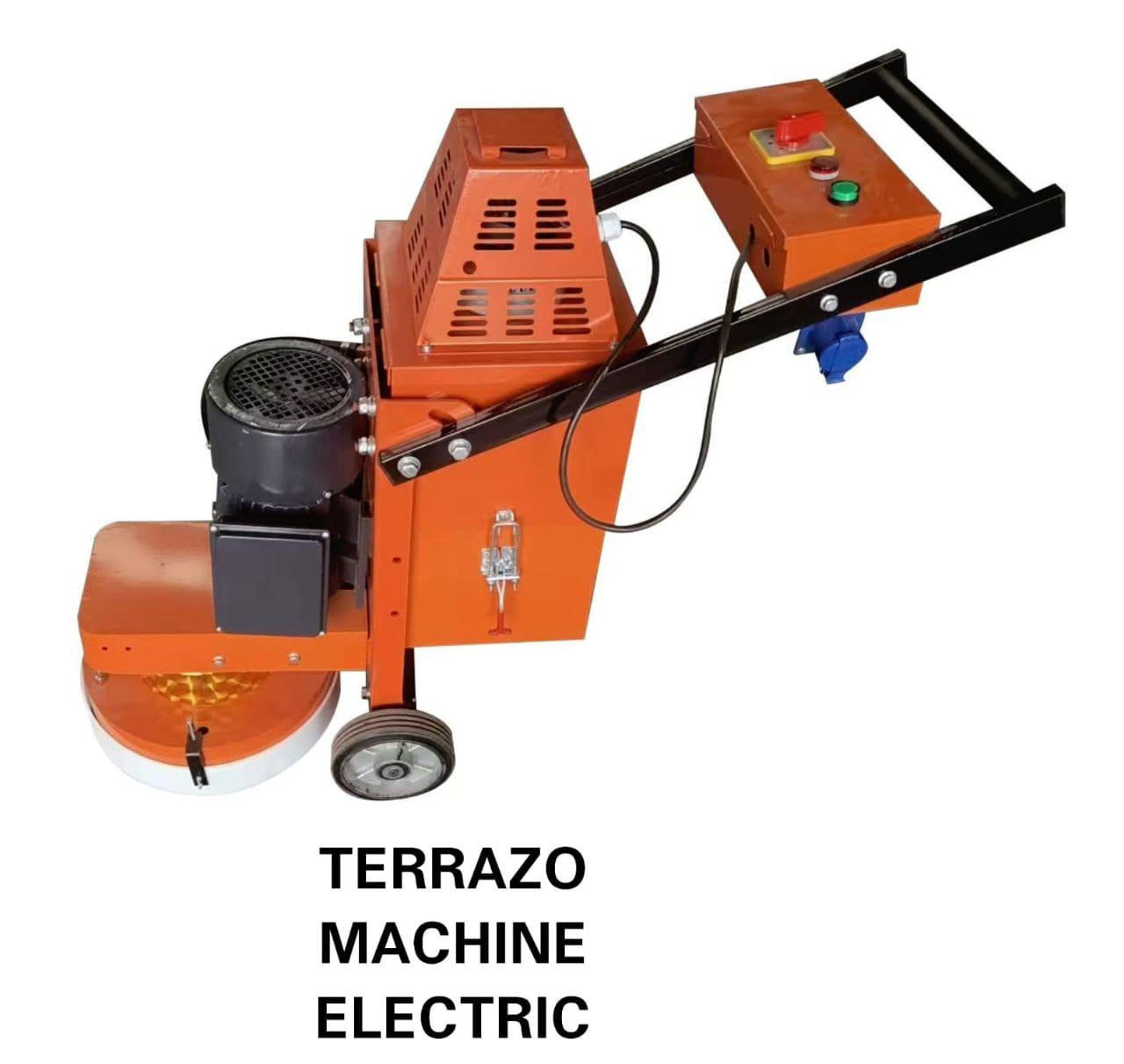

Electric Terrazzo Machine – Typical Specifications
An electric terrazzo machine is used for grinding, smoothing, and polishing terrazzo, marble, and concrete floors in construction and flooring applications.
Specification Typical Value
Machine Type Electric Terrazzo Grinding Machine
Motor Power 3 HP (2.2 kW)
Voltage 220V–240V AC
Phase Type Single Phase
Motor Speed 1400 RPM
Grinding Plate Speed 400 RPM
Grinding Disc Size 12 inch
Operation Type Push type/manual control
Application Terrazzo, marble, concrete polishing
Cooling Method Air cooled
Frame Material Heavy-duty steel
Working Mode Wet/Dry grinding
Weight 80–150 kg
Mobility Wheel-mounted portable unit
Common Features
Heavy-duty induction motor
Low vibration operation
High torque grinding system
Easy handling and maintenance
Suitable for commercial and residential flooring
Typical Uses
Terrazzo floor polishing
Marble grinding
Concrete surface finishing
Floor restoration work
Construction site finishing
Industry Reference Specifications
Commercial electric terrazzo machines commonly use:
3 HP motors
1400 RPM motor speed
12-inch grinding plates
Single-phase induction motors
More advanced industrial terrazzo grinders may use:
7.5–15 kW motors
Variable speed control
Large grinding widths for industrial flooring
Operating Principle
The electric motor rotates a grinding plate fitted with:
Abrasive stones
Diamond pads
Polishing discs
This smooths and polishes terrazzo surfaces to achieve a glossy finish.
Typical Accessories
Grinding stones
Diamond polishing pads
Water tank
Splash guard
Extension cable
Dust shroud
You can also ask for:
Nameplate specification format
Brochure-style specs sheet
Price range
Motor sizing
Wiring diagram
Spare parts list
Daily maintenance guide
Safety instructions
