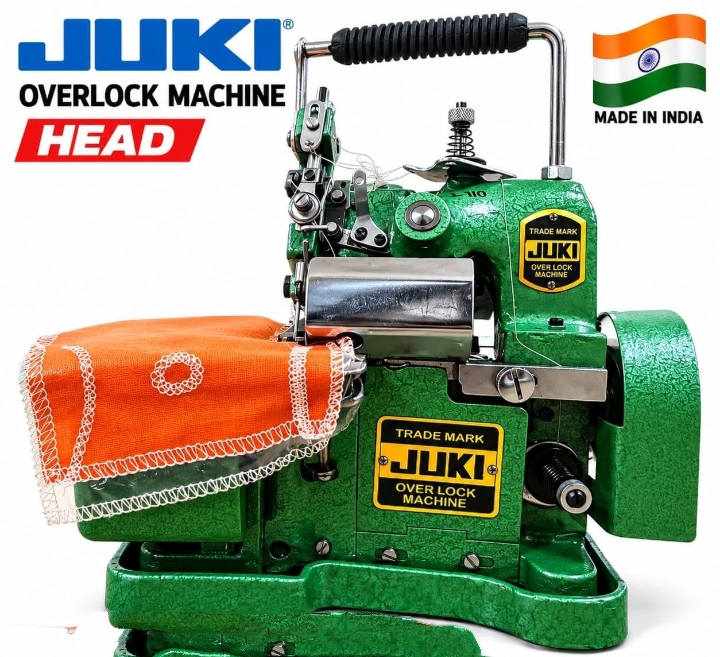

JUKI-STYLE SEWING MACHINE HEAD

Technical Specifications

General Information

• Machine Type: Industrial/Tailoring Overlock Machine Head (Serger)

• Design Class: 81K-Class (Singer / Indian Standard Overlock Pattern)

• Origin: Made in India

• Configuration: Standalone Machine Head with Top Handle (Motor/Treadle Mountable)

Sewing Performance

• Stitch Type: 3-Thread Overlock / Overedging

• Number of Needles: 1 Single Needle

• Number of Threads: 3 Threads

• Max Sewing Speed: 3,000 – 3,300 stitches per minute (SPM)

• Max Stitch Length: Approx. 3.0 mm – 4.0 mm (6 to 16 stitches per inch)

• Stitch Width: Approx. 3.5 mm – 4.5 mm

• Max Sewing Thickness: Up to 4.8 mm fabric thickness

Operation & Build

• Drive System: Can be operated via external electric motor or manual foot treadle

• Body Material: Heavy-duty cast iron body with green crackle finish

• Tension Mechanism: Self-locking thread tensioning disks

• Net Weight (Head Only): Approx. 11 kg – 13 kg

Suitable Applications

• Fabrics: Cotton, wool, silk, synthetic knits, hosiery, and light-to-medium woven textiles.

• Tasks: Fabric edge trimming, serging, seaming, hemming, and decorative edging for tailors, boutiques, and small garment units.
