MONEYMAKER MAX PUMP

Core Specifications

• Pump Type: Manually operated, positive-displacement pressure treadle pump.

• Operation Method: Operated via a stepping or “stairmaster” motion using the dual foot pedals.

• Weight: 16 kg (pump unit only).

• Flow / Pumping Rate: Up to 60 liters per minute (1.8 liters per second).

Hydraulic Capabilities

• Maximum Suction Depth: 7 meters (23 feet) — ideal for drawing water from hand-dug wells, rivers, streams, and ponds.

• Maximum Pumping Height (Head): 14 meters (46 feet) — allows the pump to push water uphill or fill overhead storage tanks.

• Horizontal Push Distance: Up to 200 meters (656 feet) on flat ground.

• Irrigation Capacity: Capable of efficiently irrigating up to 2 acres of land per day.

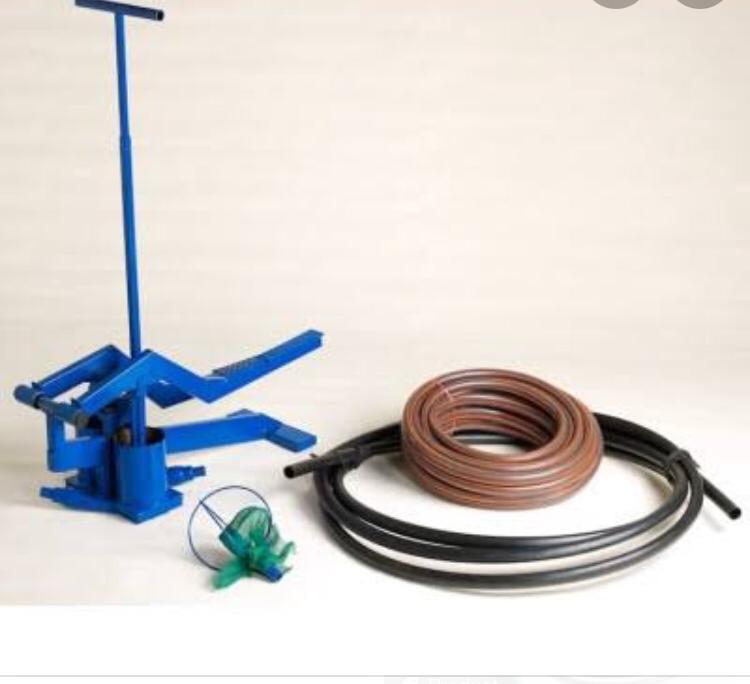

Included Accessories

• Inlet Hose: Heavy-duty reinforced black suction pipe (typically 10 meters long).

• Outlet/Delivery Hose: Flexible brown lay-flat or coiled delivery hose (typically 18 meters long) for moving water to furrows, sprinklers, or storage.

• Suction Filter / Intake Screen: The small blue and green mesh assembly at the bottom, which attaches to the inlet hose to prevent sand, debris, and pebbles from clogging the pump cylinders.

• Removable Handle: The tall blue T-bar handle used by the operator for stability while pumping.
