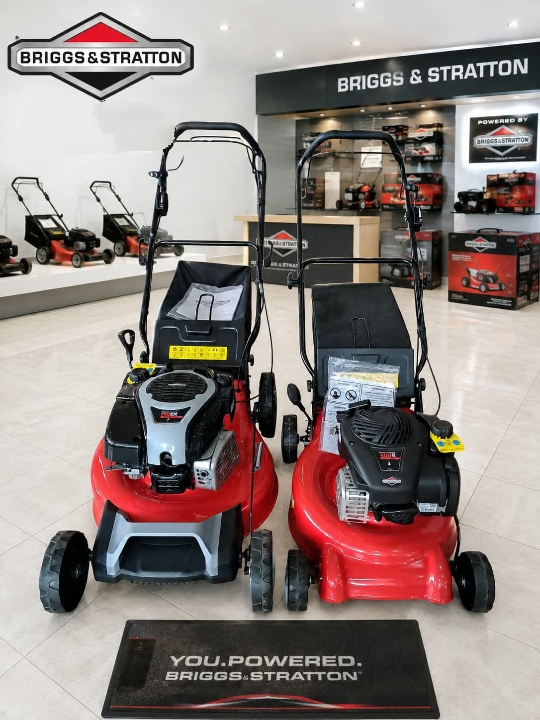

4HP LAWN MOWER

1. Core Engine Performance & Output

• Power Rating: ~4.0 Gross HP

• Gross Torque: 6.78 Nm (5.0 ft-lbs) @ 2,600 RPM

• Displacement: 140 cc

• Engine Type: 4-Stroke, Single Cylinder, Air-Cooled, OHV (Overhead Valve)

• Model Series: 09P8

2. Dimensions & Physical Build

• Bore × Stroke: 63.4 mm times 44.5  mm

• Cylinder Lining: Aluminum

• Dry Weight: 7.7 kg – 8.2 kg

• Dimensions (L × W × H): 351 mm times 310 mm times 244 mm

3. Capacities, Fuel & Lubrication

• Fuel Type: Unleaded Petrol / Gasoline

• Fuel Tank Capacity: 0.80 Liters (0.21 US Gal)

• Oil Capacity: 0.47 Liters (15 oz)

• Recommended Engine Oil: SAE 30 (for normal temps) or 5W-30 Synthetic

• Lubrication System: Dura-Lube™ Splash Lubrication

4. Key Features & Components

• Starting System: Prime ‘N Pull™ (Primer bulb system for quick starting)

• Muffler Type: Lo-Tone™ Quiet Exhaust Muffler

• Air Filter Type: Oiled foam element

• Governor System: Mechanical governor
