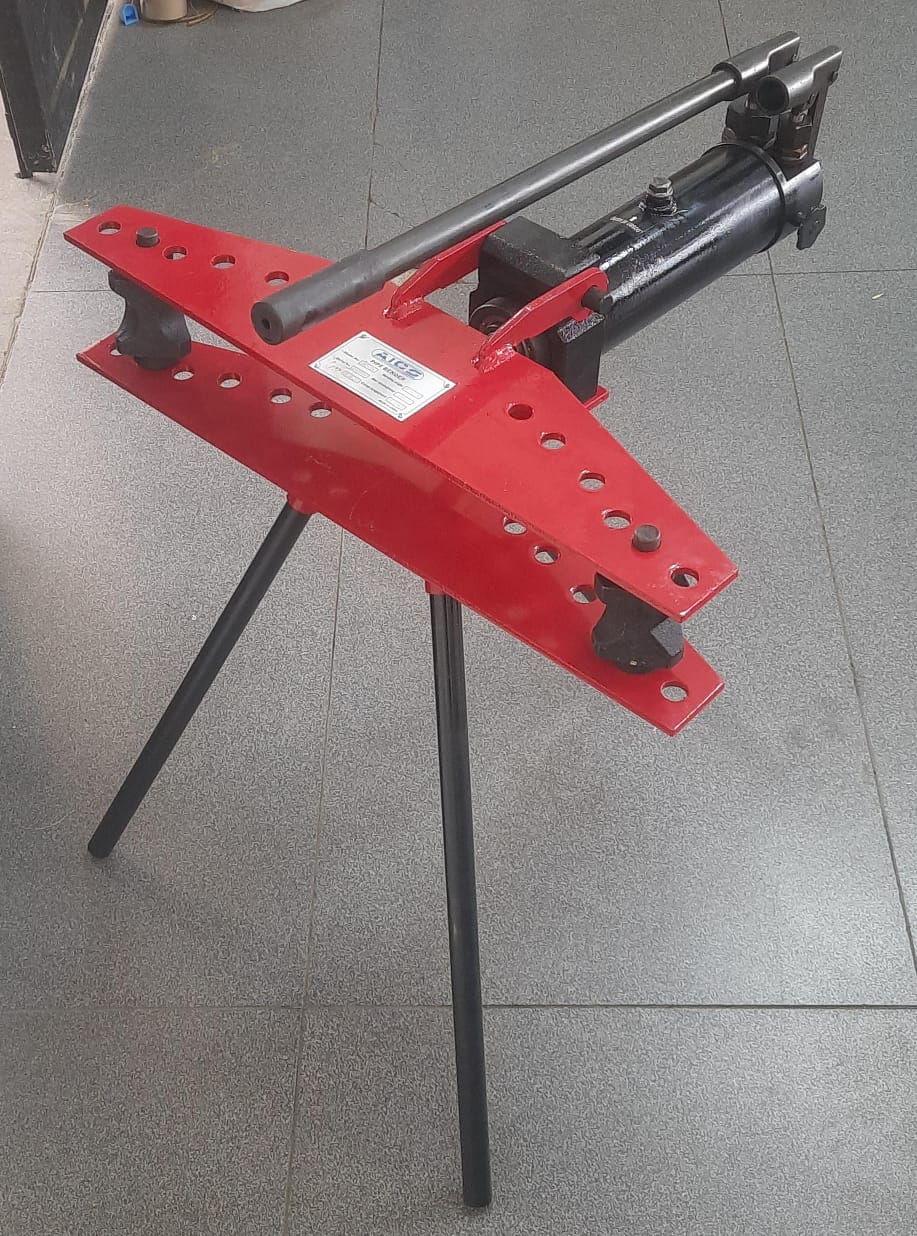

AICO SWG-3A HEAVY-DUTY MANUAL HYDRAULIC PIPE BENDER

Hydraulic & Performance Specs

• Model Designation: SWG-3A (or SWG-3)

• Maximum Hydraulic Output Force: 18 to 20 Tonnes (upgraded from the 15–16 tonnes on the 2-inch model to manage the massive resistance of 3-inch steel).

• Maximum Piston Stroke: $290\text{mm}$ to $320\text{mm}$ (requires a longer ram stroke to fully form the wider radius curves of 3-inch pipe).

• Bending Angle: Up to $90^\circ$ in a single controlled press.

• Bending Radius: 4D (four times the nominal diameter of the pipe being formed).

• Overall Bending Range: Outer diameters from $\Phi 21.3\text{mm}$ up to $\Phi 88.5\text{mm}$ ($\frac{1}{2}\text{ inch}$ to $3\text{ inches}$).
